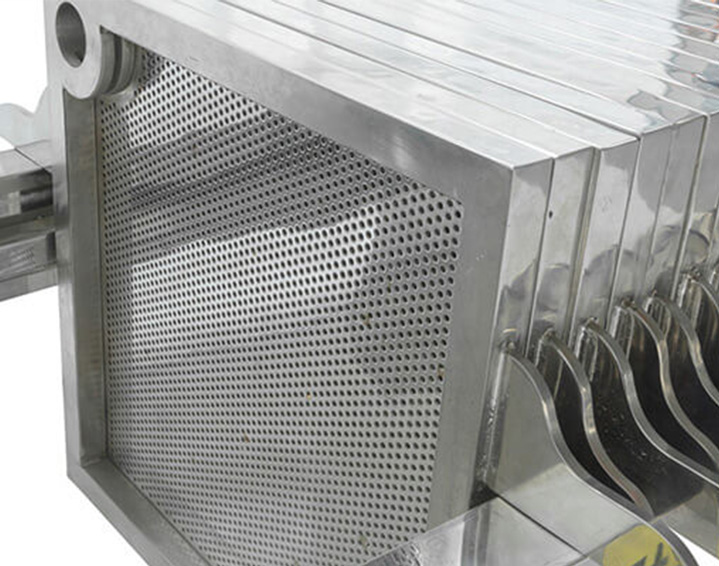

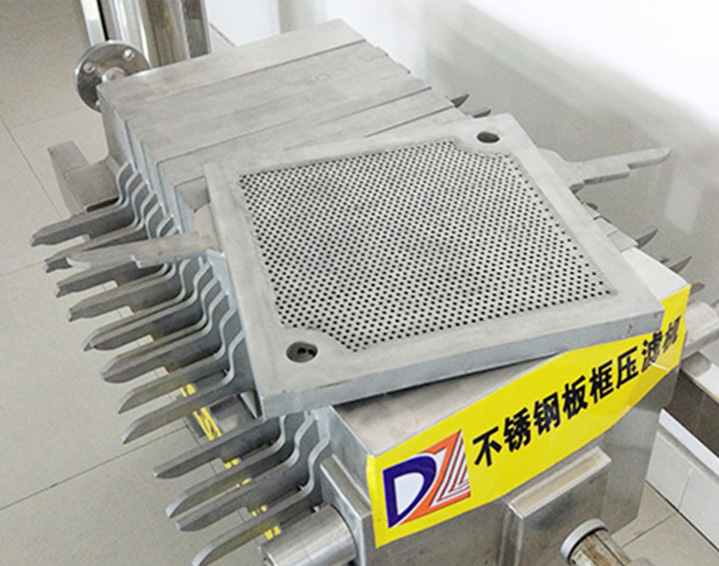

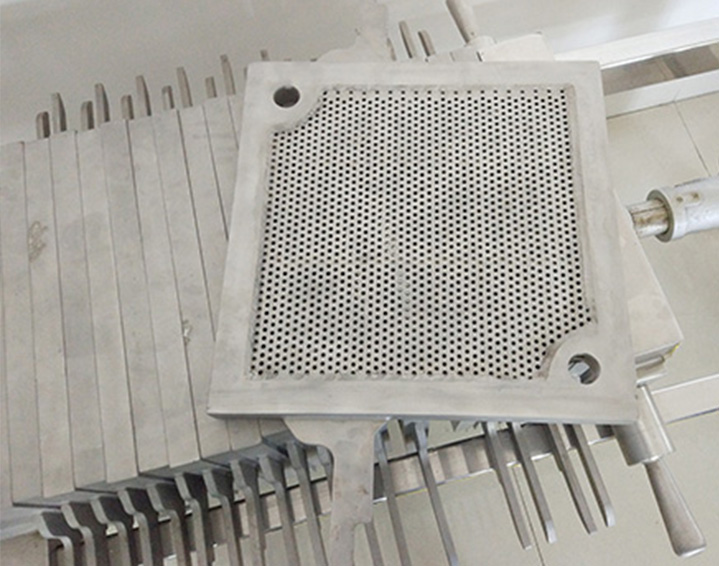

Stainless Steel Filter Plate
Stainless Steel Filter Plate
Stainless Steel Filter Plate

Stainless Steel Filter Plate

Stainless steel filter plates are an alternative to cast iron filter plates, stainless steel filter plates are valued for their corrosion resistance, high strength, temperature resistance, hygienic properties, and versatility. They are widely used in industries such as pharmaceuticals, food and beverage, chemicals, and wastewater treatment, where reliable and sanitary solid-liquid separation is essential.

products Advantages

  • 1. High-temperature resistance, high-pressure resistance,
  • 2. Acid resistance, alkali resistance, and corrosion resistance.
  • 3. Long service life

Technical Data

Format Standard sizes: 320mm—800mm, Larger and alternative formats available upon request.
Feed eye position Corner feed
Pressure Standard products are suitable for a maximum filtration pressure of 8 or 10 bar depending on the product.
Temperatures  -15℃—200℃
Materials SAF2205, SS304, SS316L, etc. Can be customized.
Typical applications 1) Food & brewing, beverage; 2) Edible oil bleaching and fractionation; 3) Sugar; 4) Pharmaceutical; 5)Chemical industry, etc.

contact us

The 30-year filtration experience of our technical team will help our clients to obtain a reliable filtration solution.

  • *

  • *

Related products

Filter Cloth

The material of filter cloth includes polypropylene, polyester, nylon, polyester, cotton, non-woven fabric, mono-multifilament etc. The cloth is customized according to the design size and shape of the filter plate.

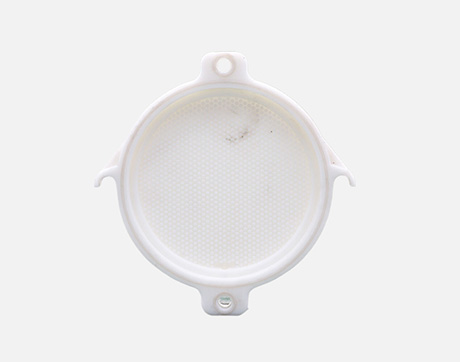

Cotton Cake Filter Plate

Cotton cake filter plates are valued for their natural filtration properties, high absorption capacity, gentle filtration, versatility, eco-friendliness, and cost-effectiveness.

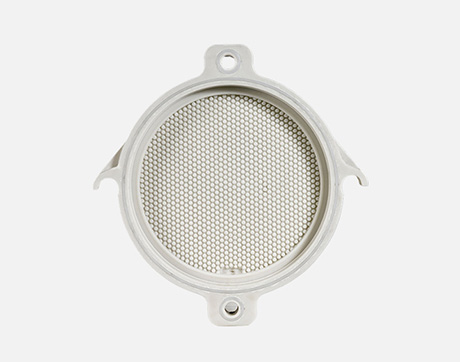

Circular Filter Plate

Circular filter plates are valued for their uniform filtration, robust construction, easy installation, versatility, customizable designs, chemical resistance, hygienic design, and cost-effectiveness.

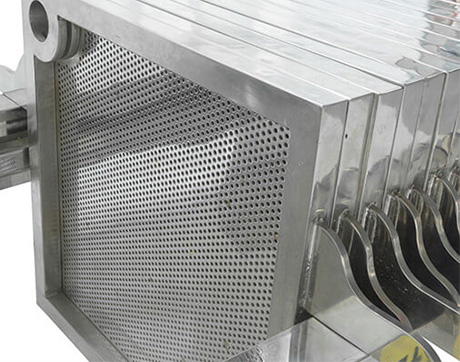

Stainless Steel Filter Plate
