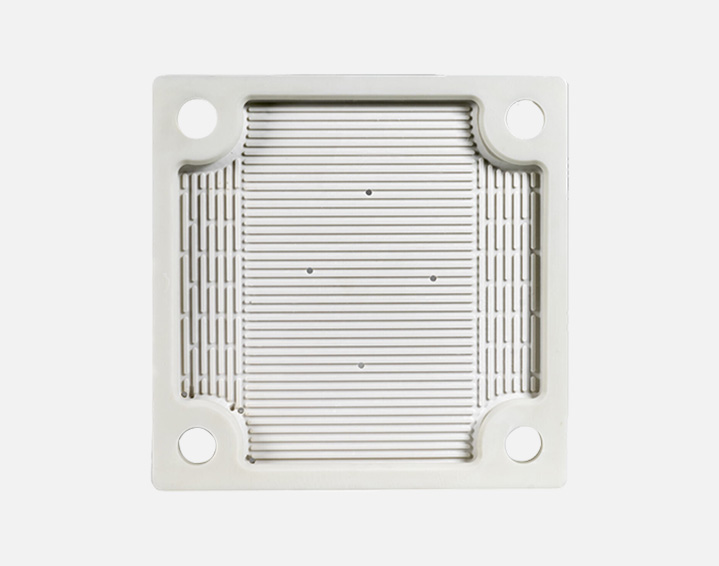

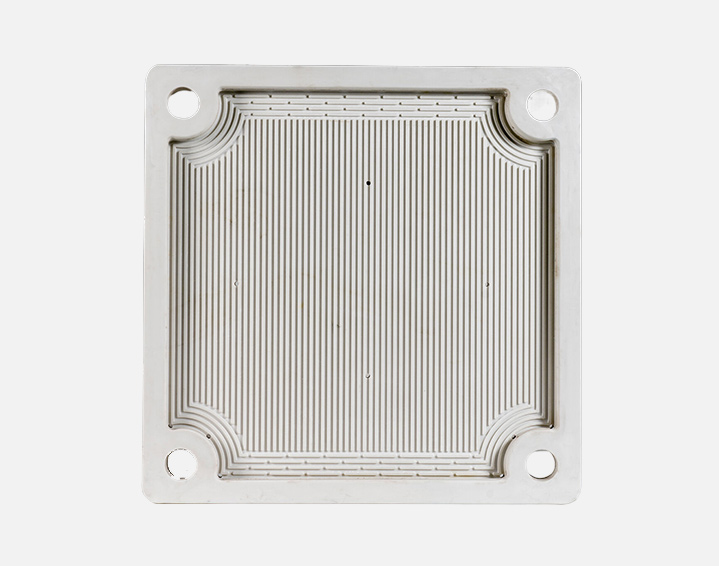

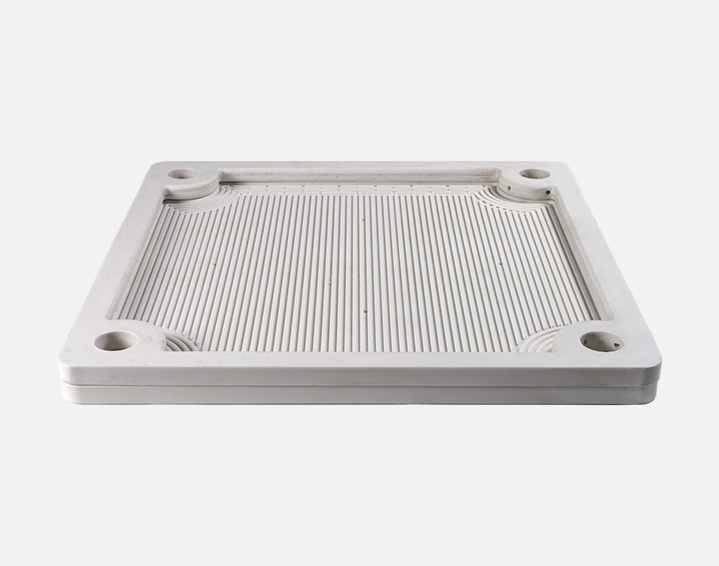

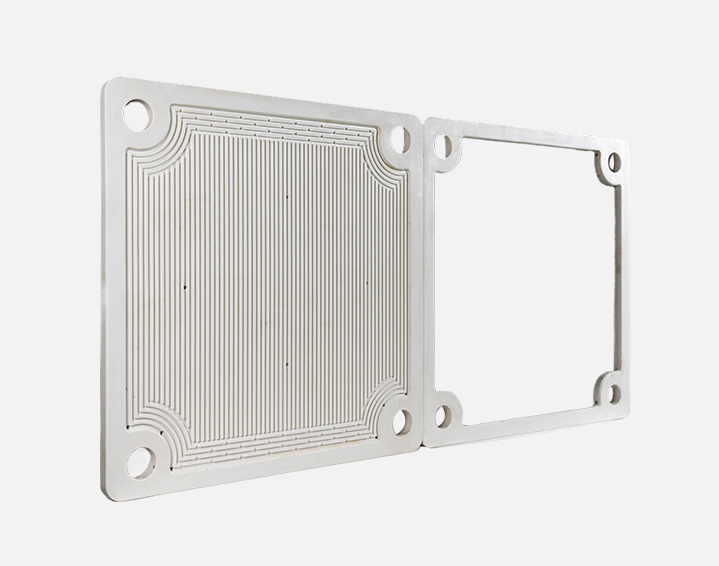

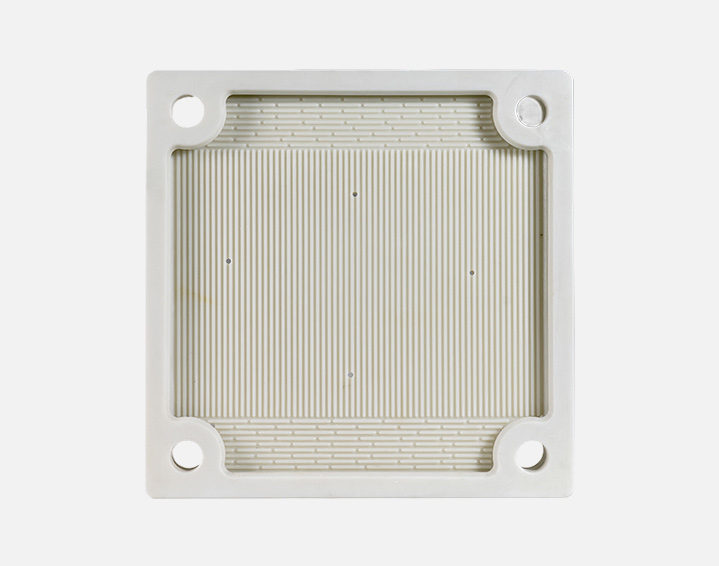

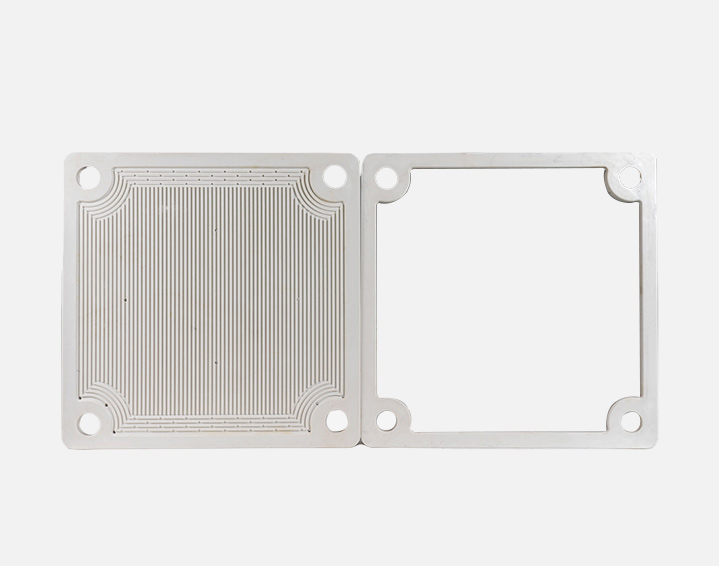

Plate and frame filter press includes plate and frame. There are PP, Cast Iron, Stainless steel plate for options for different materials. Compared to other filter press, it is the best choice for fine filtration, especially for edible oil. Filter cloth, filter sheet, filter paper are all can be used together with it.
Plate and frame filter presses can be used in a wide range of industries and applications, They are capable of handling various types of slurries and achieving different levels of filtration efficiency.
Plate and frame filter presses are relatively easy to maintain.
Filter presses offer long-term cost savings.
| Format | Standard sizes: 320mm—1000mm, Larger and alternative formats available upon request. |
| Feed eye position | corner feed |
| Pressure | Standard products are suitable for a maximum filtration pressure of 6 or 8 bar depending on the product. |
| Temperatures | -5℃—90℃ |
| Materials | chamber filter plates are available in the following materials according to intended use: Polypropylene PVDF Alkaline-free glass fiber Other materials available on request |
| Typical applications | 1) Food & brewing，beverage; 2) Edible oil bleaching and fractionation; 3) Pharmaceutical, etc. |
The 30-year filtration experience of our technical team will help our clients to obtain a reliable filtration solution.
The material of filter cloth includes polypropylene, polyester, nylon, polyester, cotton, non-woven fabric, mono-multifilament etc. The cloth is customized according to the design size and shape of the filter plate.
Cast iron filter plates are valued for their durability, temperature resistance, chemical compatibility, and uniform filtration performance. They are commonly used in industries such as oil refinery, oil recycling.
CGR filter plates offer reliable sealing performance, versatility, chemical compatibility, hygienic design, ease of maintenance, and longevity. They are commonly used in industries where tight sealing and product purity are essential requirements for solid-liquid separation processes.
Stainless steel filter plates are an alternative to cast iron filter plates, stainless steel filter plates are valued for their corrosion resistance, high strength, temperature resistance, hygienic properties, and versatility.
