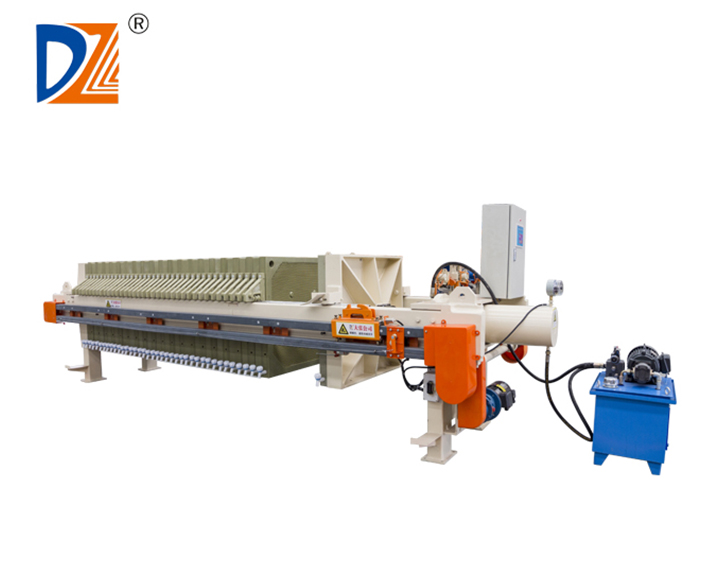

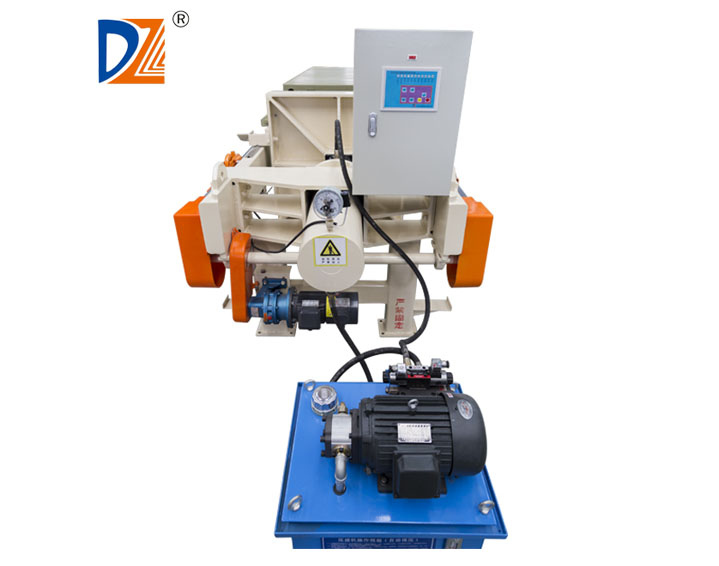

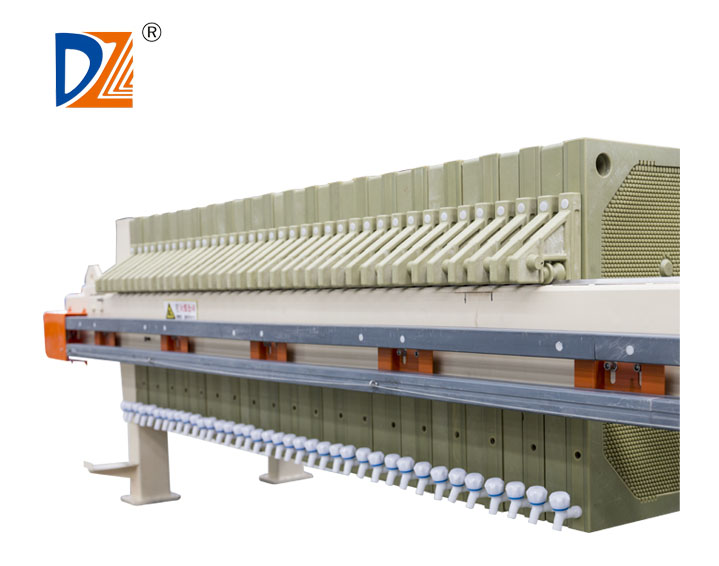

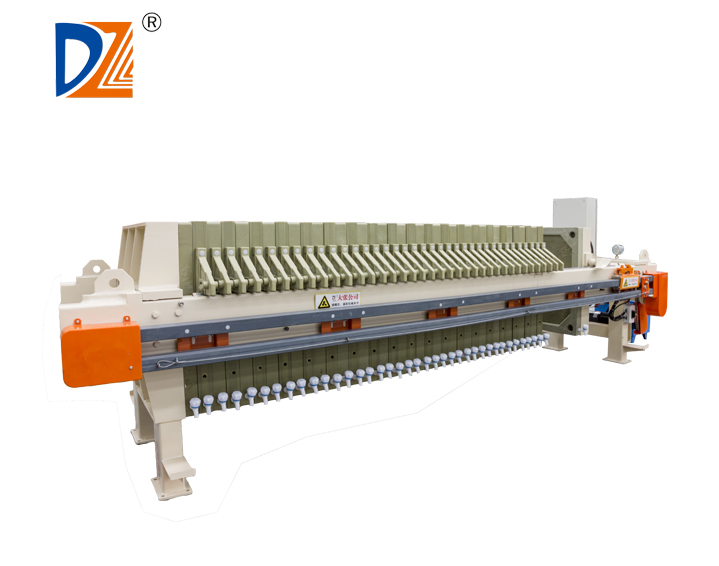

Membrane Filter Press
Membrane Filter Press
Membrane Filter Press
Membrane Filter Press

Membrane Filter Press

Our filter press can be made according to your specified order:

1.Plate Size：630x630mm to 2000x2500mm

2.Filtration area：1m2-1200m2

3.Chamber Depth: 10mm-60mm

4.Filtration pressure: up to 1.5 MPa
Membrane filter press is widely used in petroleum, chemical industry, pharmacy, sugar making, food, coal washing, grease, printing and dyeing, brewing, ceramics, mining metallurgy, sewage treatment and other fields.

Send Email Chat Now

products Advantages

  • 1. There are adopted Low pressure filtration and high pressure pressing, which are more efficient than traditional filter presses, greatly shortening the entire filtering cycle.
  • 2. The independently developed high-strength PP filter plate is used, and the compression pressure can reach 22MPA.
  • 3. Save the consumption of operating power. In the later stage of filtration, the flow is small and the pressure is high.
  • 4. The working process of membrane pressing consumes very short time, saving power consumption.
  • 5. Increase the density of cake and reduce the water content of cake. The membrane squeezes the filtered filter cake for the second time, so that the internal structure of the filter cake is rearranged and the density is increased, thus replacing part of the water, so that the water content is greatly reduced, the drying cost is saved, and the yield is increased.
  • 6. It has strong corrosion resistance and is basically applicable to all solid-liquid separation operations.
  • 7. It can be configured with PLC and human-computer interface control, and the operation procedure can be adjusted according to the on-site working conditions.
  • 8. Membrane filter plate has good toughness, anti-aging and sealing performance to achieve the purpose of aseptic filtration. The user can also adjust the number of filter plates according to the size of the filter volume to meet the production needs.
  • 9. High pressure dewatering technology is applied in the sludge dewatering industry. The water content of filter cake is reduced to meet the landfill and incineration standards (the water content in different industries varies). Compared with traditional dewatering equipment, the water content of filter cake is greatly reduced; The whole machine can realize fully automatic operation, and is equipped with online filter cloth flushing system and electric control valve instrument to realize unattended operation.

Technical Data

Model Filtration area
(m²)		 Plate size
(mm)		 Cake thickness
(mm)		 Filter chamber volume
(L)		 Plate Qty.
(pcs.)		 Motor power
(Kw)		 Weight
(Kg)		 Dimensions
L*W*H(mm)
G30/870-U 30 870*870 ≤35 498 23 2.2 3046 3880*1250*1300
G40/870-U 40 623 29 3593 4270*1250*1300
G50/870-U 50 789 37 4057 4790*1250*1300
G60/870-U 60 955 45 4597 5310*1250*1300
G70/870-U 70 1121 53 5136 5830*1250*1300
G80/870-U 80 1287 61 5636 6350*1250*1300
G50/1000-U 50 1000*1000 776 27 4 4352 4270*1500*1400
G60/1000-U 60 943 33 4480 4700*1500*1400
G70/1000-U 70 1109 39 5263 5130*1500*1400
G80/1000-U 80 1275 45 5719 5560*1500*1400
G100/1000-U 100 1608 57 6555 6410*1500*1400
G120/1000-U 120 1941 69 7466 7260*1500*1400
G80/1250-U 80 1250*1250 ≤40 1560 29 5.5 10900 4830*1800*1600
G100/1250-U 100 1975 37 11750 5440*1800*1600
G120/1250-U 120 2391 45 12600 6060*1800*1600
G150/1250-U 150 2911 55 13620 6820*1800*1600
G160/1250-U 160 3119 59 14470 7130*1800*1600
G200/1250-U 200 3847 73 15320 8200*1800*1600
G240/1250-U 240 4679 89 16170 9420*1800*1600
G250/1250-U 250 4783 91 17020 9570*1800*1600
G200/1500-U 200 1500*1500 3809 49 11 26120 7140*2200*1820
G250/1500-U 250 4723 61 26930 7730*2200*1820
G300/1500-U 300 5637 73 28160 8720*2200*1820
G350/1500-U 350 6551 85 29600 10110*2200*1820
G400/1500-U 400 7618 99 31500 11260*2200*1820
G450/1500-U 450 8532 111 33400 12250*2200*1820
G500/1500-U 500 9446 123 33380 13240*2200*1820
G600/2000-U 600 2000*2000 11901 85 15 54164 13030*3000*2500
G700/2000-U 700 13838 99 58300 14390*3000*2500
G800/2000-U 800 14945 107 62460 15770*3000*2500
G900/2000-U 900 17713 127 66620 17150*3000*2500
G1000/2000-U 1000 19651 141 70780 18530*3000*2500

contact us

The 30-year filtration experience of our technical team will help our clients to obtain a reliable filtration solution.

  • *

  • *
