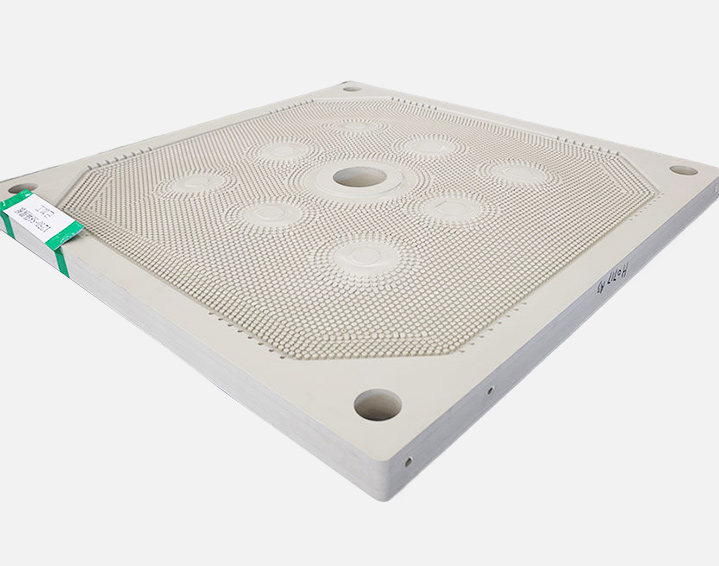

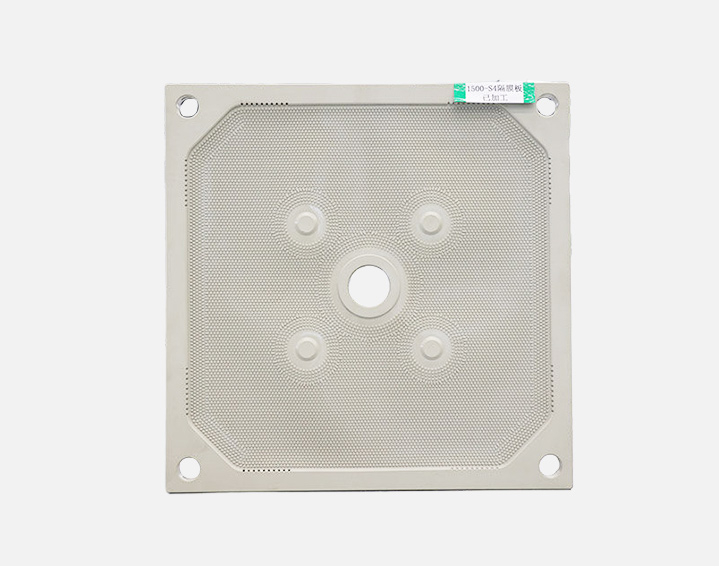

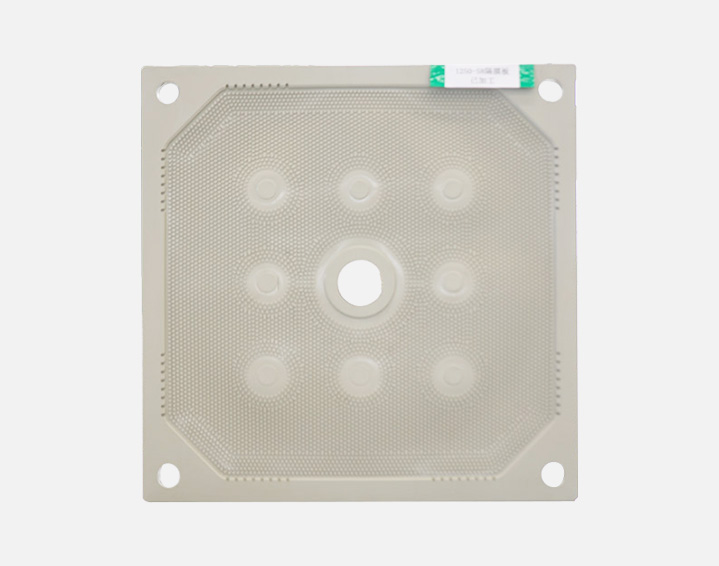

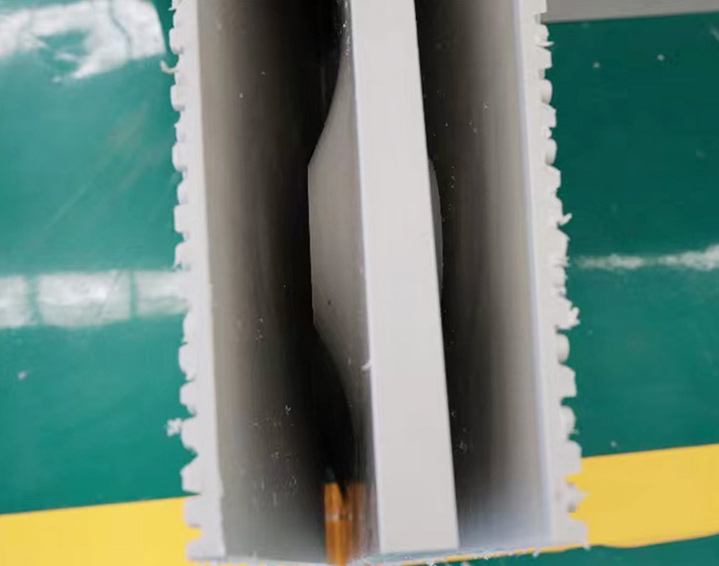

A membrane plate consists of a body plate and two pieces of membrane leafs. Dazhang can provide welded and detachable (replaceable) membrane plates. Body plate and membrane leaf are compression molded up to 60 bar pressure to keep its high strength and offers a high elasticity. The modified polyolefin (majority PP) membrane material, has outstanding temperature resistance, mechanical stress resistance and chemical resistance.
The membrane plate is suitable for cake washing or purification by means of core washing and corner washing. This can substantially reduce washing time and washing water consumption.
| Format | Standard sizes: 250mm—2500mm, Larger and alternative formats available upon request. |
| Feed eye position | Centralized feed, decentralized feed, corner feed, external feed eye Other feed eye arrangements can be provided for specific requirements. |
| Pressure | Standard products are suitable for a maximum filtration pressure of 8 or 16 bar depending on the product. Special products for pressure levels of 30 bar and higher are available. |
| Temperatures | -15℃—105℃ |
| Materials | polypropylene, modified polypropylene, thermoplastic elastomers, PVDF as well as our own specially developed membrane material. A combination of different materials can be used for the body plate and membrane. |
| Typical applications | 1) Chemical industry; 2) Municipal sewage, industrial waste water treatment and potable water; 3) Metal refining; 4) Mining industry, ore concentrates and tailings; 5) Minerals processing; 6) New energy battery materials; 7) Food & brewing; 8) Edible oil bleaching and fractionation; 9) Sugar; 10) Pharmaceutical; 11) Sand and aggregates; 12) Tunnel drilling and construction field sludge dewatering |
The 30-year filtration experience of our technical team will help our clients to obtain a reliable filtration solution.
