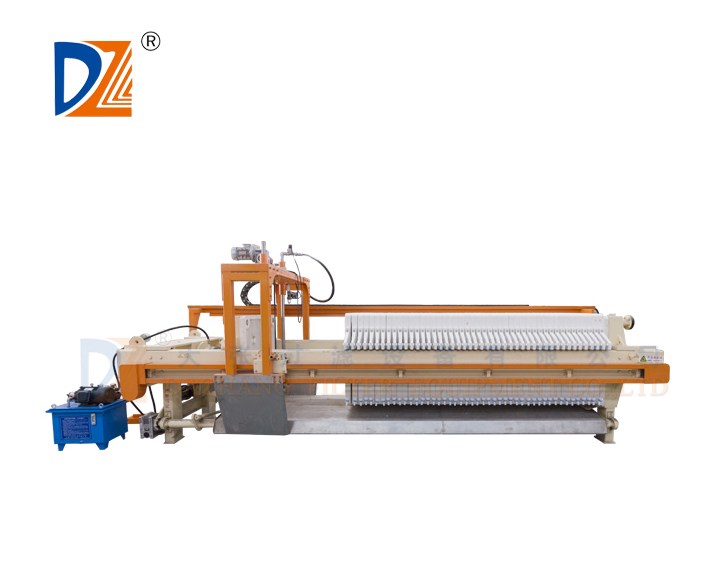

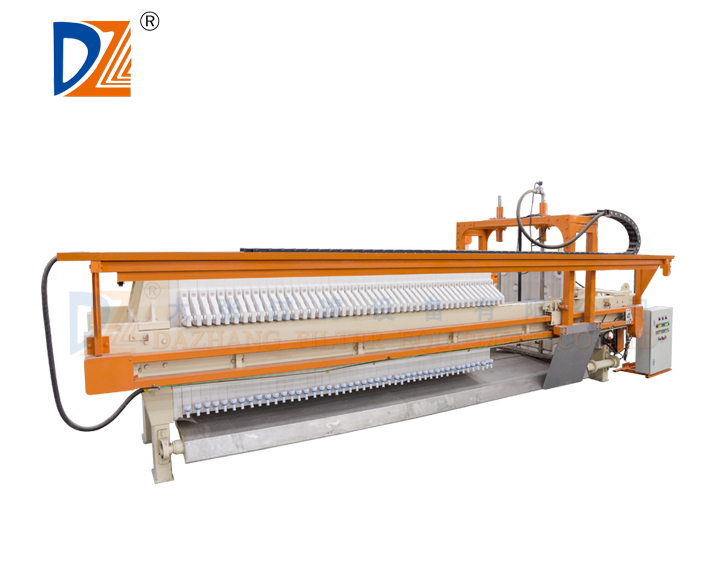

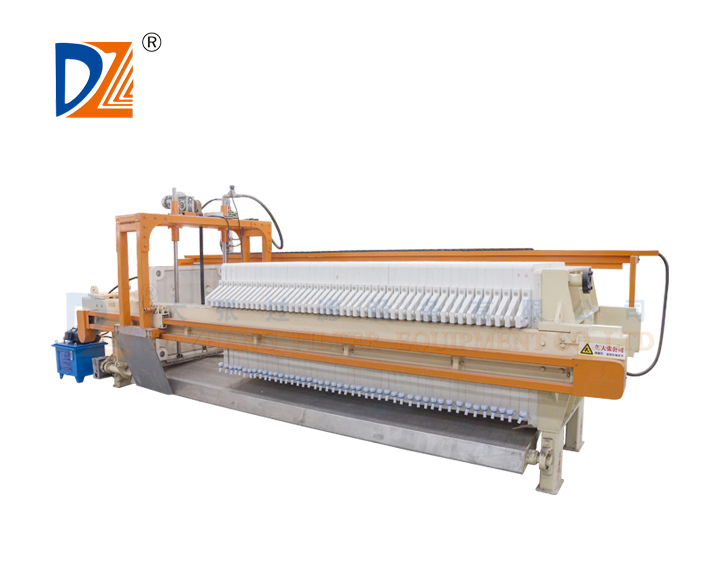

Chamber Filter Press
Chamber Filter Press
Chamber Filter Press
Chamber Filter Press
Chamber Filter Press

Chamber Filter Press

Our filter press can be made according to your specified order:

1.Plate Size：630x630mm to 2000x2500mm

2.Filtration area：1m2-1200m2

3.Chamber Depth: 10mm-60mm

4.Filtration pressure: up to 1.5 MPa
The program-controlled high-pressure chamber filter press is widely used for solid-liquid separation in petrochemical, metallurgical (gold, silver, copper, iron, zinc, rare earth, etc.), petroleum (light oil, glycerin, motor oil, vegetable oil etc.), ceramics (bentonite, active white clay, porcelain clay, etc.) and other industries.

Send Email Chat Now

products Advantages

  • 1. Higher Feeding Pressure：0.6-1.2MPa

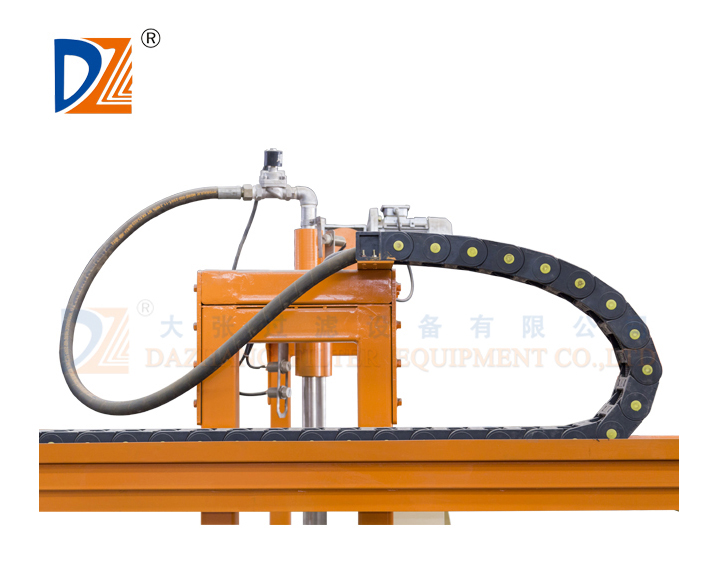

  • 2. Automatic filter cloth washing system, saving labor cost and prolonging the service life of cloths.
  • 3. The filter press plate is made of reinforced PP material.
  • 4. With higher cost performance, cheaper than other type filter presses
  • 5. Widely used in various industries, it is the most popular filter press model in the market.
  • 6. Automatic discharge of filter cake, saving labor costs.
  • 7. Program-controlled automatic chamber filter press can carry out multiple operations, such as, filter plate pressing, liquid collector plate open/close, filter plate releasing, filter plate withdrawing, cloth washing, with micro chip cotroller, PLC touch screen installed. You can also deal with all the works by remote control of this machine.

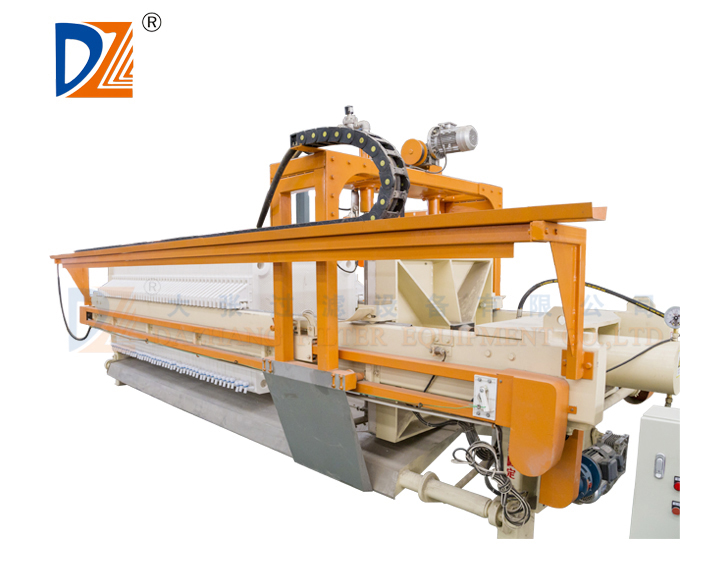

  • 8. With shifter assembled and meanwhile the hydraulic cylinder enhanced, program-controlled automatic chamber/recessed filter press turns to be an energy-efficient filter press, it could discharge more filter cakes as before.

Technical Data

Model Filter Area
(m²)		 Plate size
(mm)		 Cake thickness
(mm)		 Filter chamber volume
(L)		 Plate QTY
(pcs)		 Motor power
(KW)		 Dimensions
L*W*H(mm)
XMZ200/1500−35U 200 1500*1500 35 2998 49 7.5 6400*2200*1900
XMZ250/1500−35U 250 3594 61 7225*2200*1900
XMZ300/1500−35U 300 4347 74 8130*2200*1900
XMZ350/1500−35U 350 5043 86 8950*2200*1900
XMZ400/1500−35U 400 5796 99 9880*2200*1900
XMZ450/1500−35U 450 6492 111 10690*2200*1900
XMZ500/1500−35U 500 7187 123 11560*2200*1900
XMZ600/2000−40U 600 2000*2000 40 8926 85 15 11100*3000*2500
XMZ700/2000−40U 700 10380 99 12200*3000*2500
XMZ800/2000−40U 800 11210 107 13350*3000*2500
XMZ900/2000−40U 900 13290 127 14500*3000*2500
XMZ1000/2000−40U 1000 14740 141 15600*3000*2500

contact us

The 30-year filtration experience of our technical team will help our clients to obtain a reliable filtration solution.

  • *

  • *

Related products

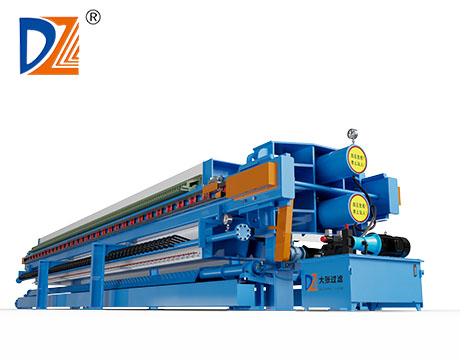

Membrane Filter Press
