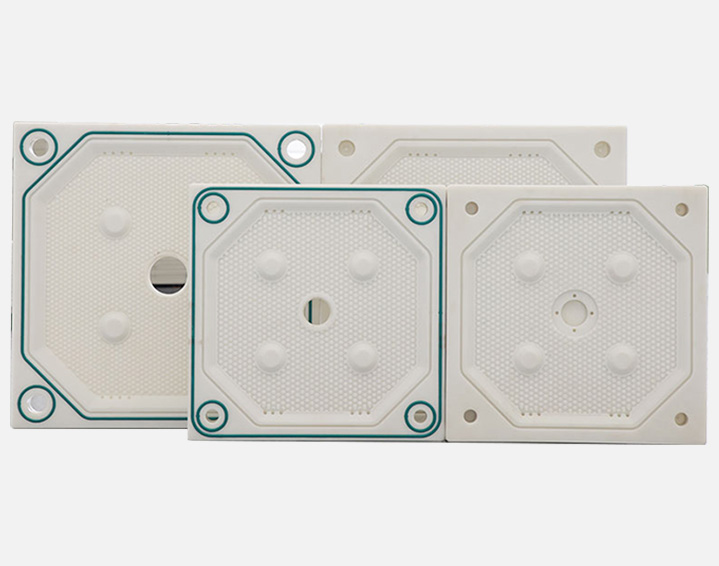

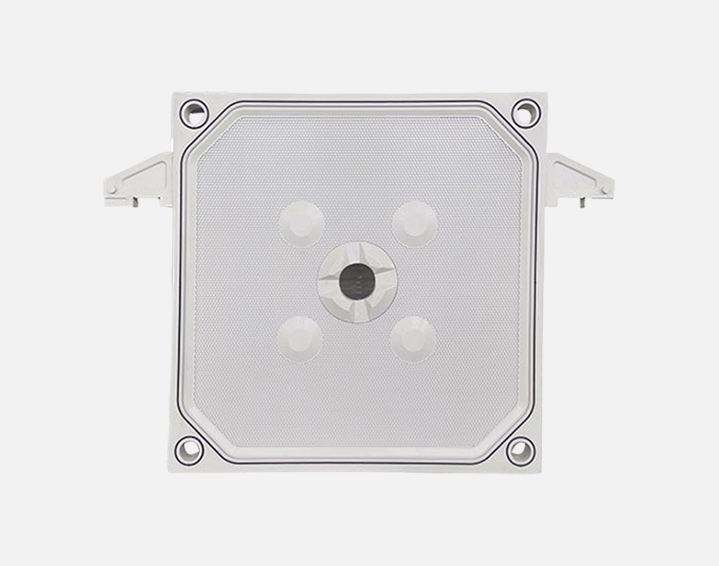

CGR filter plates offer reliable sealing performance, versatility, chemical compatibility, hygienic design, ease of maintenance, and longevity. They are commonly used in industries where tight sealing and product purity are essential requirements for solid-liquid separation processes.

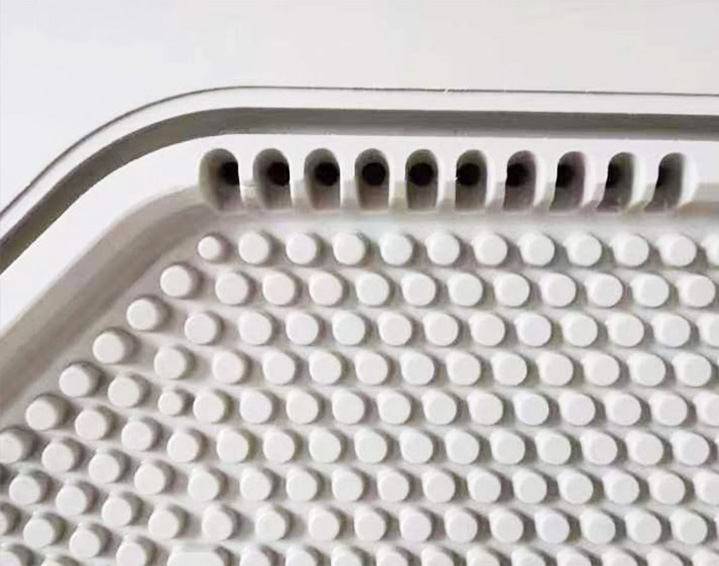

CGR filter plates feature a unique design where a gasket material is securely sealed into a groove around the perimeter of the filter plate.
The caulking of gasket material prevents leaks and ensures that the filtration process remains tightly sealed.
| Format | 450*450mm 630*630mm 800*800mm 870*870mm 1000*1000mm 1250*1250mm 1500*1500mm 2000*2000mm formats available upon request. |
| Feed eye position | Centralised feed |
| Pressure | Standard products are suitable for a maximum filtration pressure of 8 or 16 bar depending on the product. Special products for pressure levels of 30 bar and higher are available. |
| Temperatures | -15℃—105℃ |
| Materials | polypropylene, modified polypropylene, thermoplastic elastomers, PVDF as well as our own specially developed membrane material. A combination of different materials can be used for the body plate and membrane. |
| 密封条材质 | EPDM, NBR, silicone, PTFE, etc., Can be customized |
| Typical applications | CGR filter plates are suitable for applications which slurries contain volatile substances or toxic and harmful substances. |
The 30-year filtration experience of our technical team will help our clients to obtain a reliable filtration solution.
The material of filter cloth includes polypropylene, polyester, nylon, polyester, cotton, non-woven fabric, mono-multifilament etc. The cloth is customized according to the design size and shape of the filter plate.
Cotton cake filter plates are valued for their natural filtration properties, high absorption capacity, gentle filtration, versatility, eco-friendliness, and cost-effectiveness.
Circular filter plates are valued for their uniform filtration, robust construction, easy installation, versatility, customizable designs, chemical resistance, hygienic design, and cost-effectiveness.

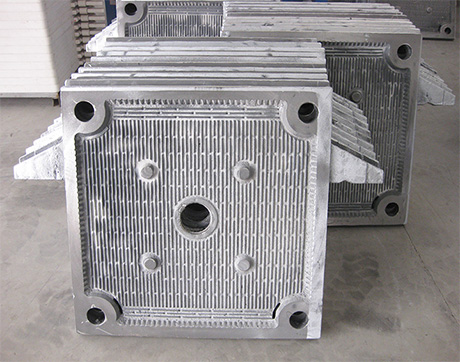

Cast iron filter plates are valued for their durability, temperature resistance, chemical compatibility, and uniform filtration performance. They are commonly used in industries such as oil refinery, oil recycling.
